DIP Varistor

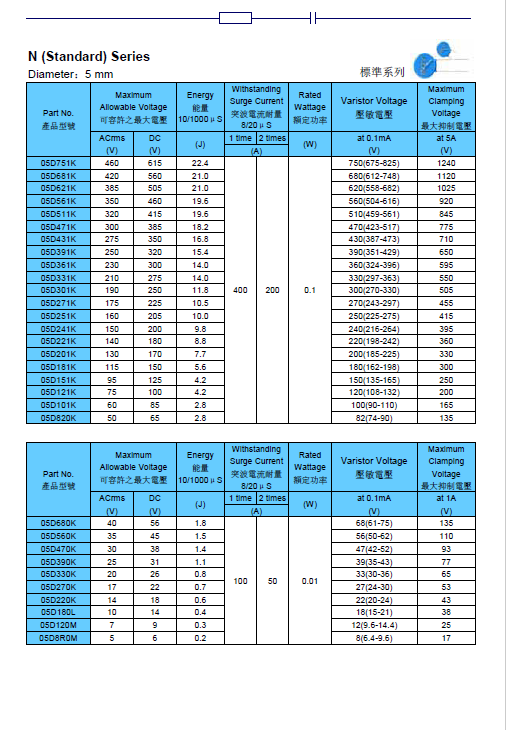

Product size:5MM,voltage:18V-510V,Through-flow: 500A-800A，Surge passing capacity: 1KV-1.5KV has passed UL certification and Canada CSA certification, VDE United States certification
item no.:
VDR-05D271Klead time:
2-4 Weekproduct orgin:
Chinashipping port:
Chinapayment:
CODcolor:
blueA varistor is an electronic component with an electrical resistance that varies with the applied voltage. At low voltage it has a high electrical resistance which decreases as the voltage is raised. Varistors are used as control or compensation elements in circuits either to provide optimal operating conditions or to protect against excessive transient voltages. When used as protection devices, they shunt the current created by the excessive voltage away from sensitive components when triggered.
previous :
Lighting product varistor 10D471Knext :
Automotive electronic DC circuit 12V protection varistor 07D270KYou are interesting in this products
Product size:05D,07D,10D,14D,20D,25D voltage:18V-1800V surge:100A-20KA
size:7mm,More voltage:18-820V,Through-flow: 1200A-1750A, applied in car cigarette lighter, charger, and stereo, windows, mainly used as over-voltage protection
size:14mm,voltage:470V,Pin distance:10mm,Throughflow is 6.5KA, voltage is 470V (220/230V) The products passed UL, VDE, CSA, CQC, ISO,
large-size 20mm, the product flow capability is 10KA and a surge capability is 20KV. More voltage:18V-1800V
size:1206(3.2*1.6),self-healing safety fuse
voltage:12V,24V,27V,30V,33V,39V,42V,47V,56V,68V,76V,82V,100V,120V,170V,240V,270V,390V,430v,470V size :(3.2*2.5) Surge passing capacity: 1KV-1.5KV
