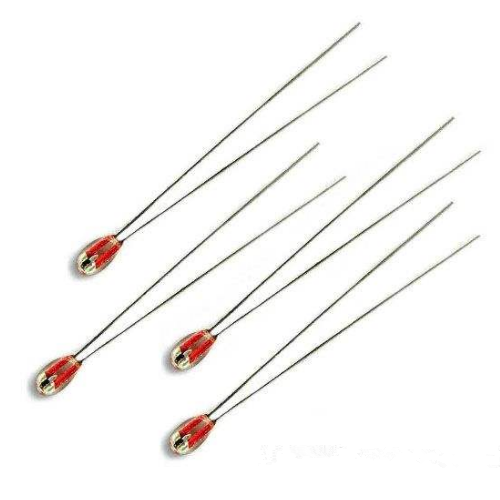

MF58 glass-encapsulated thermistor NTC single-ended thermistor

NTC,NTC Thermistor,glass-encapsulated thermistor NTC ,single-ended thermistor

1.radial leading line single-ended glass-encapsulated

Glass-encapsulated thermistors are mainly classified into single-ended glass-encapsulated thermistors and diode glass-encapsulated thermistors. Because the glass is thermally insulated, the thermistors are not affected by the extra temperature, thereby increasing the sensitivity and accuracy of the control , B value range from 3100 to 4500K, product error is 1%, 2%, 3%, 5% and 10%, operating temperature range from -55 °C to +250 °C, rated power is less than 50MW, commonly used in temperature control and temperature detection of air conditioners, microwave ovens ,induction cookers and heating stoves, it is also commonly used in temperature compensation of other products and temperature compensation of thermocouples.
